Vespel (PI) – CNC Machining

Vespel is used for CNC machined components that must retain mechanical and tribological performance at extreme temperatures where conventional engineering plastics fail.

Its machining behavior is governed by high thermal stability, low creep, and abrasive filler content in certain grades, which influences tool wear and surface finish.

At ShvaveyMetal, Vespel machining strategies are defined around rigid setups, conservative cutting parameters, and grade-specific tooling to preserve dimensional and surface integrity.

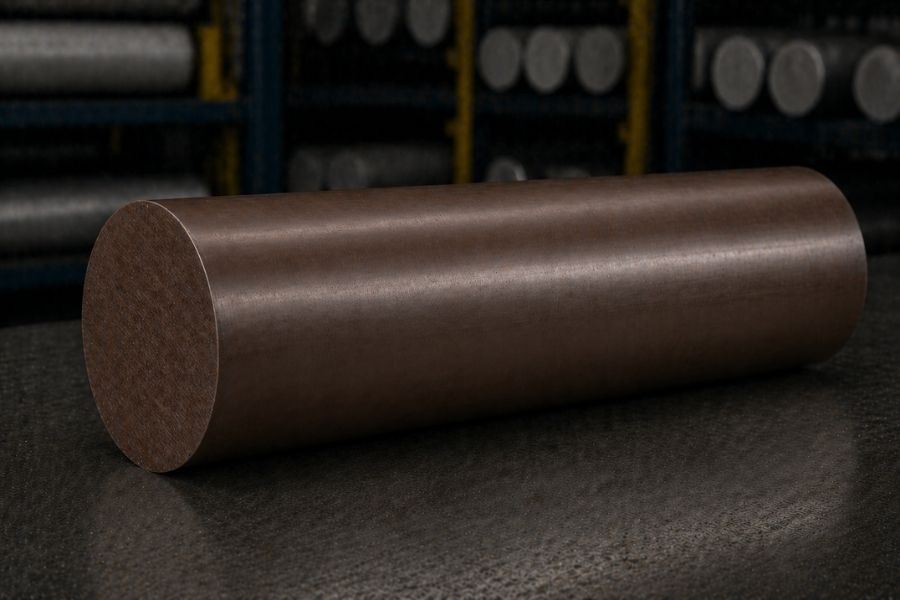

Vespel is a high-performance polyimide (PI) material family designed for continuous operation at elevated temperatures without melting, softening, or significant creep.

Mechanical Properties (Typical – Room Temperature)

Property Vespel SP-1 Vespel SP-21 Units
Density ~1.43 ~1.50 g/cm³
Tensile Strength ~85–90 ~95–100 MPa
Elastic Modulus ~3.0 ~4.5 GPa
Elongation at Break ~15 ~7 %
Hardness ~110 ~115 Rockwell M

SP-21 contains graphite filler, increasing stiffness and wear resistance while reducing ductility relative to SP-1.

Thermal & Physical Properties

Property Typical Value Units
Continuous Service Temperature ~260–300 °C
Short-Term Temperature Capability >400 °C
Thermal Conductivity ~0.35 W/m·K
Coefficient of Thermal Expansion ~45–50 µm/m·K

These properties make Vespel suitable for applications where thermal stability dominates material selection.

Tribological Behavior (General)

Characteristic SP-1 SP-21
Wear Resistance Moderate High
Friction Coefficient Moderate Low
Dry Running Capability Limited Excellent
Abrasiveness to Tools Low Moderate

Tribological performance is a key differentiator between Vespel grades in CNC machined components.

Vespel machining behavior is influenced by its high temperature resistance and, in filled grades, by abrasive fillers.

Key machining characteristics include:

  • Stable cutting behavior without melting or smearing
  • Higher cutting forces compared to common engineering plastics
  • Increased tool wear when machining graphite-filled grades such as SP-21
  • Good surface finish achievable with sharp tools and controlled feeds
  • Excellent dimensional stability during and after machining

Machining is typically performed dry or with air blast, using sharp carbide tooling and conservative parameters to control heat and tool wear.

Benefit Description
Extreme Temperature Capability Maintains properties where most plastics fail
Low Creep Supports load-bearing applications at temperature
Dimensional Stability Retains geometry under thermal cycling
Wear and Friction Performance Suitable for dry-running and sliding interfaces
Chemical Stability Resists most fuels, oils, and industrial chemicals

Vespel is commonly used for CNC machined components such as:

  • High-temperature bushings and bearings
  • Thrust washers and wear rings
  • Seals and backup rings for extreme environments
  • Semiconductor and vacuum system parts

Application suitability depends on grade selection, temperature range, and tribological requirements.

Grade General Characteristics
Vespel SP-1 Unfilled PI with best toughness and machinability
Vespel SP-21 Graphite-filled for improved wear and low friction
Other SP Grades Filled with PTFE or other additives for specific wear profiles

Grade selection directly impacts machinability, tool life, and in-service performance.

  • Select grade based on wear and friction requirements rather than strength alone
  • Account for higher material cost by optimizing geometry and stock size
  • Use conservative tolerances aligned with functional requirements
  • Avoid unnecessary cosmetic surface finish requirements
  • Select tooling suitable for abrasive fillers when machining SP-21

Early alignment between design intent, grade selection, and machining strategy is critical for cost-effective Vespel components.

FAQ

What is Vespel?

Vespel is DuPont's trade name for a family of polyimide shapes produced by a direct forming process rather than conventional melt processing. It retains mechanical and tribological performance at temperatures far beyond most engineering plastics, which is why it is specified where no other polymer performs adequately.

How is Vespel machined?

Vespel machines well with sharp carbide or diamond tooling and generally does not require coolant, which suits cleanroom and contamination-sensitive applications. Given the very high material cost, machining strategy focuses on maximising yield from stock shapes and on controlling residual stress and moisture-related dimensional change for tight-tolerance parts.

Can Vespel be turned to tight tolerances?

Yes. Vespel turns cleanly and holds tight tolerances well for a polymer, which is why it is used for precision bushings, seals and thrust washers. Because it absorbs moisture and expands slightly, critical dimensions should be specified with the conditioning state defined, and inspection performed under controlled humidity.

Why is Vespel so expensive?

Vespel is produced by a specialised direct forming process from high cost polyimide raw material, and stock shapes come in limited sizes with long lead times. Efficient production therefore depends on nesting parts carefully to available stock geometry and minimising material removal, planning that should begin at quotation stage.

What is Vespel used for?

Common applications include bushings, bearings, seals, thrust washers, insulators, valve seats and wear components in semiconductor process equipment, energy systems, industrial machinery and analytical instruments, where high temperature, low friction and dimensional stability must coexist.


Why Machine Vespel at ShvaveyMetal

ShvaveyMetal machines Vespel using CNC workflows optimized for high-temperature polymers, with emphasis on dimensional stability, tool life control, and grade-specific process planning.

This approach supports reliable Vespel machining for critical components where thermal, wear, and dimensional performance are non-negotiable.
