Nylon 66 (PA66) – CNC Machining

Nylon 66 is used for CNC machined components where wear behavior, toughness, and low friction are required in sliding or rotating interfaces.

Its machining response is strongly influenced by moisture state and heat buildup, which can shift dimensions and surface finish if not controlled.

At ShvaveyMetal, nylon CNC machining workflows are defined around conditioning awareness, chip evacuation, and finishing sequences that protect tolerance and edge quality.

Nylon 66 (PA66) is a semi-crystalline engineering thermoplastic selected for mechanically loaded polymer parts where wear resistance and toughness are required.

Mechanical Properties (Typical – Dry As Machined)

Property Typical Value Units
Density ~1.14 g/cm³
Tensile Strength ~75–85 MPa
Yield Strength ~60–75 MPa
Elongation at Break ~40–60 %
Elastic Modulus ~2.7–3.2 GPa
Hardness ~110–120 Rockwell R

Mechanical properties can shift with moisture absorption, which reduces stiffness and increases ductility.

Thermal & Physical Properties

Property Typical Value Units
Melting Temperature ~255–265 °C
Continuous Service Temperature ~90–120 °C
Thermal Conductivity ~0.25 W/m·K
Coefficient of Thermal Expansion ~80–100 µm/m·K

These properties drive thermal growth and tolerance planning, especially for long parts and tight fits.

Environmental / Moisture Behavior (General)

Factor Typical Effect
Water Absorption Increases dimensions and reduces stiffness
Conditioning State (Dry vs Wet) Changes fit, tolerance, and surface response
Temperature + Humidity Cycling Can introduce drift in precision assemblies

Moisture condition must be treated as a design input when tight tolerances are required.

Nylon 66 machining behavior is governed by chip control, heat management, and dimensional change driven by moisture uptake.

Key machining characteristics include:

  • Tendency toward stringy chips that require active chip evacuation
  • Risk of local softening or surface smearing if cutting parameters generate excess heat
  • Good surface finish potential with sharp tools and stable feeds that avoid rubbing
  • Part deflection risk in thin-wall geometry due to polymer compliance
  • Dimensional variability if parts are machined dry and later equilibrate to ambient humidity

Machining is typically performed with sharp carbide tools, generous chip clearance, and process sequencing aligned with the target conditioning state.

Benefit Description
Wear Resistance Performs well in sliding contact and general abrasion exposure
Low Friction Behavior Suitable for bushings, guides, and polymer–metal interfaces
Toughness Tolerates impact and handling better than brittle plastics
Weight Reduction Replaces metal in non-structural load paths with lower mass

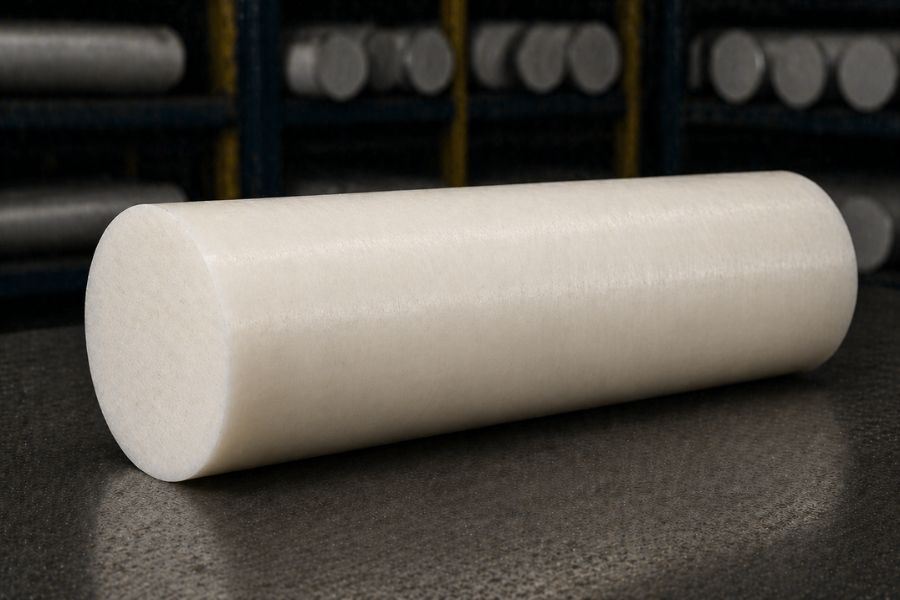

Broad Availability Commonly stocked in machinable bar and plate forms

Nylon 66 is commonly used for CNC machined components such as:

  • Bushings, sleeves, and wear rings
  • Sliding guides, rails, and spacers
  • Gears and rollers for moderate load duty cycles
  • Fixtures and support parts requiring toughness and low friction
  • Prototype polymer components requiring functional wear behavior

Application suitability depends on humidity exposure, temperature range, and tolerance sensitivity.

Variant / Form General Characteristics
Unfilled Nylon 66 (PA66) Baseline balance of toughness and wear behavior
Glass-Filled Nylon (PA66-GF) Higher stiffness and lower creep; increased tool wear and anisotropy
MoS2 / Oil-Filled Grades Improved friction and wear for sliding interfaces
Conditioned vs Unconditioned Conditioning state impacts dimensional stability and fits

Machining parameters and inspection planning can vary significantly between unfilled and reinforced grades.

  • Define the target conditioning state for inspection and final assembly
  • Avoid tolerance stack-ups that assume metal-like stability under humidity change
  • Use generous radii and support features to reduce part deflection during machining
  • Plan chip evacuation for deep pockets and bores to prevent heat buildup
  • Specify bearing interfaces with awareness of moisture-driven property shifts

Tolerance strategy must be aligned with the part’s humidity exposure in service.

FAQ

How is Nylon 66 machined?

Nylon machines well but is soft and thermally sensitive, so sharp tooling, high spindle speeds and effective chip evacuation are needed to avoid melting or smearing. Because it is comparatively flexible, workholding must support the part adequately without deforming it, particularly for thin-walled or slender components.

Why do machined Nylon 66 parts change dimensions after production?

Nylon 66 is hygroscopic and absorbs moisture from the atmosphere, which causes measurable dimensional growth and changes mechanical properties. Parts machined from dry stock will grow as they equilibrate. Tolerances should therefore reference the conditioned state, and inspection should take place under documented humidity conditions.

Can thin-walled precision parts be machined from PA66?

Yes, though it requires care. The material's flexibility and thermal expansion make thin sections prone to deflection and distortion. Success depends on supportive fixturing, light finishing passes, controlled heat generation and staged material removal to release stress gradually rather than all at once.

What tolerances are realistic for machined Nylon 66 components?

Nylon holds looser tolerances than acetal or PEI because of its moisture absorption and high thermal expansion. Where tight tolerances are essential, Delrin or another lower-absorption material is often the better specification. If PA66 is required, tolerances should be agreed with the moisture and temperature state defined.

What are machined PA66 components used for?

Typical applications include gears, bushings, bearings, wear strips, rollers, guides, insulators and general industrial machinery components. It is often selected to replace metal where reduced weight, quieter running, self-lubrication or corrosion resistance are advantageous under moderate loads.
