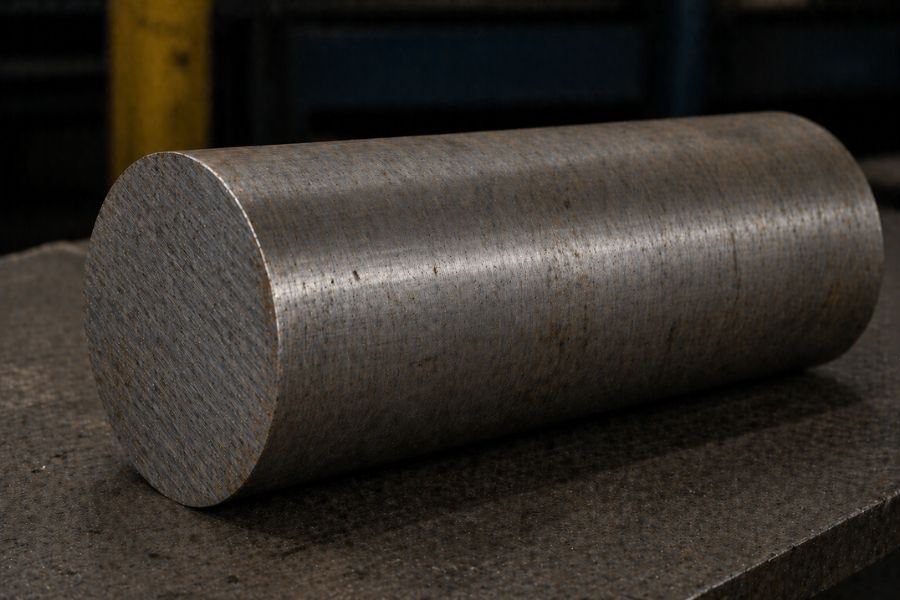

1020 Steel – CNC Machining

1020 steel is used for CNC machined parts where moderate strength, good ductility, and predictable machining behavior are required.

Its low carbon content results in relatively low cutting forces and stable chip formation across common machining operations.

At ShvaveyMetal, 1020 machining workflows are defined around dimensional stability, surface finish control, and compatibility with forming or welding processes.

AISI 1020 is a low-carbon plain carbon steel commonly specified for general-purpose mechanical and structural components.

It is often selected when higher ductility and toughness are required compared to 1018, without the need for high hardness or deep heat treatment response.

Mechanical Properties (Typical – As Rolled / Normalized)

Property Typical Value Units
Density ~7.87 g/cm³
Yield Strength ~350 MPa
Ultimate Tensile Strength ~420–550 MPa
Elongation at Break ~15–25 %
Elastic Modulus ~200 GPa
Hardness ~120–180 HB

Mechanical properties depend on product form, processing history, and whether the material is hot rolled, cold drawn, or normalized.

Thermal & Physical Properties

Property Typical Value Units
Thermal Conductivity ~51 W/m·K
Coefficient of Thermal Expansion ~11.7 µm/m·K
Maximum Service Temperature ~300 °C

These properties contribute to predictable thermal response and low distortion risk during CNC machining.

Chemical Composition (Representative)

Element Typical Content (%)
Iron (Fe) Balance
Carbon (C) 0.18 – 0.23
Manganese (Mn) 0.30 – 0.60
Phosphorus (P) ≤ 0.040
Sulfur (S) ≤ 0.050

Composition limits vary slightly by applicable ASTM and AISI specifications.

1020 steel machining behavior is primarily governed by its low carbon content and ferrite–pearlite microstructure.

Key machining characteristics include:

  • Low cutting forces and stable tool engagement
  • Continuous chip formation with minimal work hardening
  • Good surface finish achievable with standard carbide or HSS tooling
  • Minimal tool wear compared to higher-carbon or alloy steels
  • High dimensional stability during roughing and finishing operations

Machining is typically performed in the as-rolled, cold drawn, or normalized condition without the need for pre-machining heat treatment.

Benefit Description
Excellent Machinability Low tool wear and predictable cutting behavior
High Ductility Suitable for parts requiring forming or deformation
Dimensional Stability Low distortion during machining
Weld Compatibility Well suited for welded assemblies
Cost-Effective Carbon Steel Lower material and processing cost

1020 steel is commonly used for CNC machined components such as:

  • Brackets, plates, and general structural components
  • Shafts, spacers, and pins with moderate load requirements
  • Welded assemblies requiring post-machining operations
  • Fixtures and support components
  • Parts requiring forming followed by machining

Application suitability depends on load level, required ductility, and downstream manufacturing processes.

Condition General Characteristics
As Rolled Common supply condition with good machinability
Cold Drawn Improved dimensional accuracy and surface finish
Normalized More uniform mechanical properties
Case Hardened (Optional) Surface hardness achievable for wear applications
Stress Relieved Used to minimize residual stress for precision parts

1020 steel is not typically selected for through-hardening applications due to its low carbon content.

  • Avoid assuming high strength or hardness without surface treatment
  • Leverage ductility for forming or bending operations prior to machining
  • Define surface hardness requirements if wear resistance is needed
  • Manage continuous chip formation through appropriate tooling and chip control
  • Align tolerances with the selected material condition

Early material condition selection improves process consistency and cost control.

FAQ

What is 1020 steel?

1020 is a low carbon steel containing approximately 0.20% carbon. Like other mild steels it offers good weldability, ductility and consistent machining behaviour at low cost, and is used broadly for general machined parts, shafts and fabricated assemblies.

How does 1020 steel machine?

1020 machines predictably with conventional tooling, behaving very similarly to 1018. Being soft and ductile it can produce long chips and built-up edge if parameters are not controlled, so sharp tooling, appropriate feeds and good chip evacuation are important. Cold-drawn bar delivers better finish and tighter as-supplied tolerances.

What are machined 1020 low carbon steel parts used for?

Applications include general machined components, shafts, axles, brackets, structural members, tooling plates and welded fabrications. It is a practical default where moderate strength, good weldability and economical machining are the governing requirements.

What is 1020 steel used for?

Applications include general machined components, shafts, axles, brackets, structural members, tooling plates and welded fabrications. It is a practical default where moderate strength, good weldability and economical machining are the governing requirements.

Can 1020 steel be case hardened?

Yes. Like other low carbon steels, 1020 cannot be through hardened meaningfully but responds well to carburising and case hardening. This produces a hard, wear resistant surface over a tough core, suiting pins, bushings, light duty gears and wear components.


Why Machine 1020 Steel at ShvaveyMetal

ShvaveyMetal machines 1020 steel using CNC processes optimized for dimensional stability, surface finish control, and repeatable production.

This approach supports efficient machining of low-carbon steel components across prototype and production programs where simplicity, reliability, and cost efficiency are priorities.
