1018 Steel – CNC Machining

1018 carbon steel is used for CNC machined parts where consistent cutting behavior, good surface finish, and predictable dimensional control are required.

Its low carbon content keeps cutting forces moderate, while continuous chip formation requires deliberate chip-breaking strategy in turning and drilling.

At ShvaveyMetal, 1018 machining workflows are defined around material condition selection (hot rolled vs cold drawn), finish stability, and downstream welding or forming compatibility.

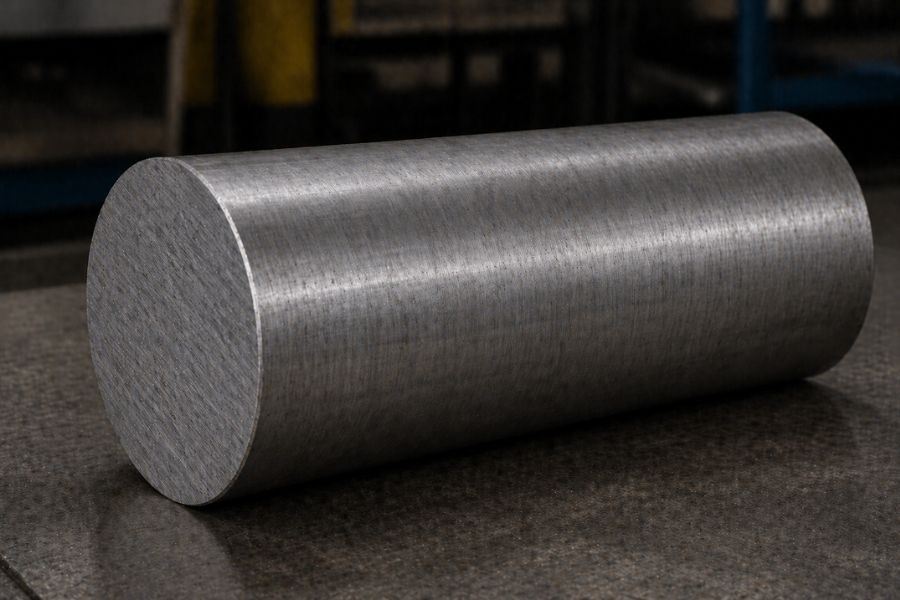

AISI 1018 is a low-carbon plain carbon steel commonly supplied as hot rolled bar or cold drawn bar for general-purpose machined components.

In practice, it is often chosen when tighter chemistry consistency and machining repeatability are preferred over structural plate-focused grades such as A36.

Mechanical Properties (Typical – Cold Drawn / As Received)

Property Typical Value Units
Density ~7.87 g/cm³
Yield Strength ~350–420 MPa
Ultimate Tensile Strength ~440–620 MPa
Elongation at Break ~15–25 %
Elastic Modulus ~200 GPa
Hardness ~120–180 HB

Mechanical properties vary with product form, cold work level, and whether the material is hot rolled, cold drawn, or normalized.

Thermal & Physical Properties

Property Typical Value Units
Thermal Conductivity ~52 W/m·K
Coefficient of Thermal Expansion ~11.7 µm/m·K
Maximum Service Temperature ~300 °C

These properties support stable thermal response during machining and reduce distortion risk in common CNC workflows.

Chemical Composition (Representative)

Element Typical Content (%)
Iron (Fe) Balance
Carbon (C) 0.15 – 0.20
Manganese (Mn) 0.60 – 0.90
Phosphorus (P) ≤ 0.040
Sulfur (S) ≤ 0.050

Composition limits vary slightly by applicable ASTM/AISI specifications and supplier certification.

1018 machining behavior is governed by its low-carbon ferrite–pearlite structure and the supplied condition (hot rolled vs cold drawn).

Key machining characteristics include:

  • Moderate cutting forces with stable tool engagement in most operations
  • Continuous chip formation that may require chip-breakers or adjusted feeds
  • Good surface finish potential, especially in cold drawn bar stock
  • Lower tool wear compared to higher-carbon steels and alloy steels
  • High dimensional stability for general tolerance work, with minimal heat-treatment distortion planning

Machining is typically performed in the as-received condition, with optional stress relief or normalization applied only when geometry or stability requirements justify it.

Benefit Description
Predictable Machining Consistent cutting response for common turning and milling operations
Surface Finish Capability Supports smooth finishes with appropriate tooling and chip control
Dimensional Stability Low distortion risk in typical rough–finish sequences
Welding Compatibility Suitable for parts that require welding after machining
Broad Availability in Bar Commonly sourced in bar forms appropriate for machined components

1018 carbon steel is commonly used for CNC machined components such as:

  • Pins, spacers, bushings, and sleeves
  • Brackets, mounts, and general mechanical supports
  • Shafts and simple turned components with moderate load requirements
  • Fixtures, jigs, and production tooling components
  • Welded assemblies requiring post-machining operations

Application suitability depends on required strength level, corrosion environment, and whether a structural plate grade is mandated.

Condition General Characteristics
Hot Rolled Common supply; lower cost; wider dimensional tolerance and surface scale
Cold Drawn Improved dimensional accuracy and surface finish; higher strength from cold work
Normalized More uniform structure and properties; used when consistency is required
Stress Relieved Used to reduce residual stress for distortion-sensitive geometries
Case Hardened (Optional) Surface hardness achievable for wear without through-hardening

1018 is not typically selected for through-hardening due to its low carbon content, but it can be surface hardened when wear performance is required.

  • Choose cold drawn stock when surface finish and size repeatability are critical
  • Plan chip control for turning and drilling due to continuous chip tendency
  • Define whether the part must comply with a structural grade (e.g., A36) versus a machined-bar grade (1018)
  • Avoid assumptions of high hardness without specifying surface treatment
  • Align tolerances with the selected supply condition (hot rolled vs cold drawn)

Early selection of stock condition reduces variability in machining results and inspection outcomes.

FAQ

How is 1018 steel machined?

1018 machines predictably and is often used as a baseline reference for machinability, rated around 70% relative to B1112. Cold-drawn bar gives better surface finish and tighter as-supplied tolerances than hot-rolled. Because it is soft and ductile, sharp tooling and effective chip evacuation are needed to prevent built-up edge and stringy chips.

What is the machinability rating of 1018 low carbon steel?

1018 is rated at approximately 70% relative to free-machining B1112 steel, good, though lower than resulphurised free-machining grades such as 12L14 or 1215. Where very high volumes of simple turned parts are involved, a free-machining grade may be more economical if its mechanical and welding properties are acceptable.

Is 1018 suitable for screw machining and high-volume turned parts?

Yes. 1018 is widely used for screw-machined components, offering consistent behaviour, good dimensional stability and reliable surface finish at production volumes. Cold-drawn stock is preferred for these applications because of its tighter size tolerance and improved finish straight from the bar.

What are machined 1018 steel parts used for?

Typical applications include shafts, pins, spacers, bushings, brackets, jigs and fixtures, and general machined components. It is selected where dimensional accuracy, good weldability and cost efficiency matter more than high strength or corrosion resistance in service.

Can machined 1018 steel parts be hardened?

1018 cannot be through hardened effectively because its carbon content is too low. It can be case hardened by carburising, producing a hard, wear resistant surface over a tough ductile core. This is a common route for pins, shafts and light duty wear components machined from 1018.


Why Machine 1018 Steel at ShvaveyMetal

ShvaveyMetal machines 1018 steel using CNC workflows focused on stable tool engagement, chip control, and condition-aware finishing strategies.

This approach supports repeatable geometry and surface finish across prototype and production runs for low-carbon steel components.
