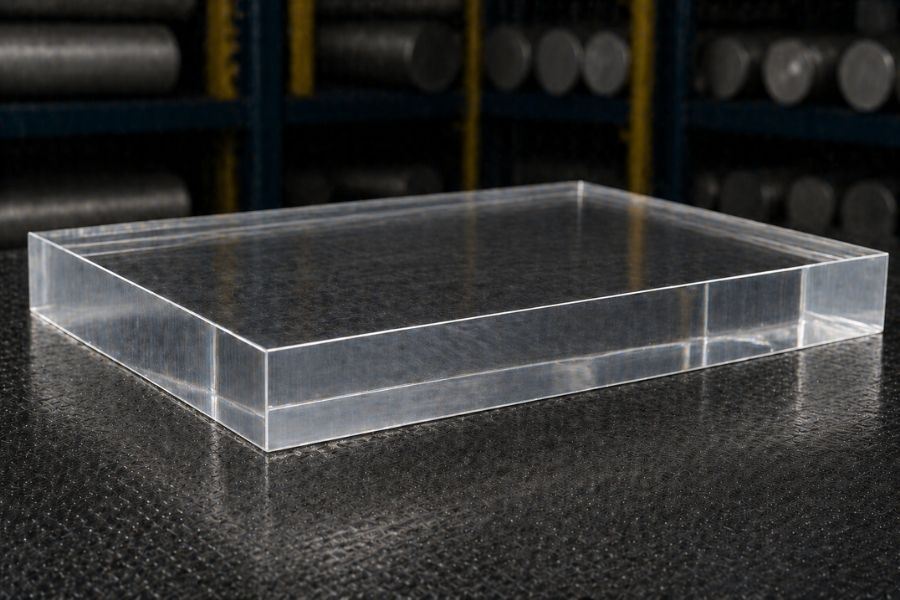

Perspex (PMMA / Acrylic) – CNC Machining

Perspex is used for CNC machined components where optical clarity, surface finish quality, and dimensional accuracy are required in transparent parts.

Its machining behavior is dominated by heat sensitivity and brittle fracture risk, requiring controlled cutting parameters to prevent chipping, cracking, or edge melting.

At ShvaveyMetal, Perspex CNC machining strategies are defined around sharp tooling, low heat input, and finishing sequences that preserve optical and geometric quality.

Perspex is a trade name for PMMA (polymethyl methacrylate), an amorphous thermoplastic selected for transparent components where clarity and surface finish are prioritized over impact resistance.

Mechanical Properties (Typical)

Property Typical Value Units
Density ~1.18 g/cm³
Tensile Strength ~65–75 MPa
Elastic Modulus ~3.0–3.3 GPa
Elongation at Break ~4–6 %
Hardness ~95–100 Rockwell M
Impact Strength Low–Moderate —

Low elongation and notch sensitivity influence machining strategy and part geometry.

Thermal & Physical Properties

Property Typical Value Units
Glass Transition Temperature (Tg) ~105 °C
Continuous Service Temperature ~80–90 °C
Thermal Conductivity ~0.19 W/m·K
Coefficient of Thermal Expansion ~70 µm/m·K

Low thermal conductivity and moderate coefficient of thermal expansion make heat management critical during CNC machining.

Optical Properties

Property Typical Value
Light Transmission ~92% (clear grades)
Haze Very low (as-machined finish dependent)
UV Stability Good (grade dependent)

Optical performance is highly sensitive to surface finish and machining-induced heat.

Perspex machining behavior is governed by brittle fracture mechanics and thermal softening at the cutting edge.

Key machining characteristics include:

  • Risk of edge chipping and micro-cracking if feed and tool geometry are not optimized
  • Surface melting or haze if cutting speed generates excess heat
  • Continuous chip formation that can re-weld to the surface under poor chip evacuation
  • Excellent optical finish achievable with correct tooling and finishing passes
  • Sensitivity to internal stress that can lead to post-machining cracking

Machining is typically performed with sharp carbide or polished tools, conservative surface speeds, and finishing passes designed to minimize heat buildup.

Benefit Description
Optical Clarity Suitable for transparent and light-transmitting components
High Surface Finish Potential Excellent visual quality with proper machining
Dimensional Accuracy Supports tight tolerances in rigid geometries
UV Stability Maintains clarity better than many transparent plastics
Predictable Machining Stable behavior when heat is controlled

Perspex is commonly used for CNC machined components such as:

  • Transparent covers, panels, and windows
  • Optical housings and light guides
  • Display components and enclosures
  • Fluid visualization and flow inspection parts
  • Prototypes requiring high visual quality

Application suitability depends on impact loading, thermal exposure, and optical requirements.

Variant General Characteristics
Clear Perspex (PMMA) Maximum optical clarity
UV-Stabilized PMMA Improved outdoor durability
Impact-Modified Acrylic Slightly improved toughness with reduced clarity
Cast vs Extruded Sheet Cast offers better machinability and surface finish

Cast PMMA is generally preferred for precision CNC machining.

  • Avoid sharp internal corners that act as crack initiators
  • Use generous fillets and edge breaks to reduce chipping risk
  • Allow for thermal expansion in long or constrained parts
  • Define optical surface requirements early in the design
  • Distinguish clearly between Perspex and polycarbonate where impact resistance is required

Material selection should explicitly address Perspex versus polycarbonate tradeoffs in impact strength and machining robustness.

FAQ

How is Perspex machined without chipping or crazing?

Acrylic is brittle and prone to chipping and crazing, so sharp tooling with high positive rake, appropriate speeds and gentle controlled feeds are essential. Heat build-up must be avoided, workholding should not induce stress, and solvent and coolant compatibility must be verified. Annealing is commonly used to relieve residual stress.

Is Perspex the same as acrylic or PMMA?

Yes, Perspex is a brand name for acrylic (PMMA), as are Plexiglas and Lucite. Specifications should reference PMMA together with the required grade, since cast and extruded acrylic differ in optical quality, machining behaviour and resistance to crazing. Cast material is generally preferred for machined components.

Can machined Perspex parts achieve optical-quality surfaces?

Yes. With correct tooling, controlled parameters and appropriate polishing, machined acrylic reaches high optical clarity on critical surfaces. Achieving this consistently depends on managing heat, residual stress and subsurface damage throughout the process rather than relying on a final polishing step alone.

What are machined Perspex components used for?

Typical applications include machine guards and viewing windows, light guides and optical components, display and enclosure panels, laboratory fixtures and prototype housings. It is chosen where optical clarity and surface quality are the priority and impact loading is limited.

How does Perspex compare with polycarbonate for machined components?

Acrylic offers superior optical clarity, greater surface hardness and better scratch and UV resistance, but it is brittle and can crack under impact. Polycarbonate is far more impact resistant but scratches more easily and yellows without UV protection. Selection depends on whether clarity or impact resistance governs.


Why Machine Perspex at ShvaveyMetal

ShvaveyMetal machines Perspex using CNC workflows focused on heat control, surface integrity, and optical-quality finishing.

This approach supports precise acrylic machining for transparent components where appearance, accuracy, and repeatability are functional requirements.
