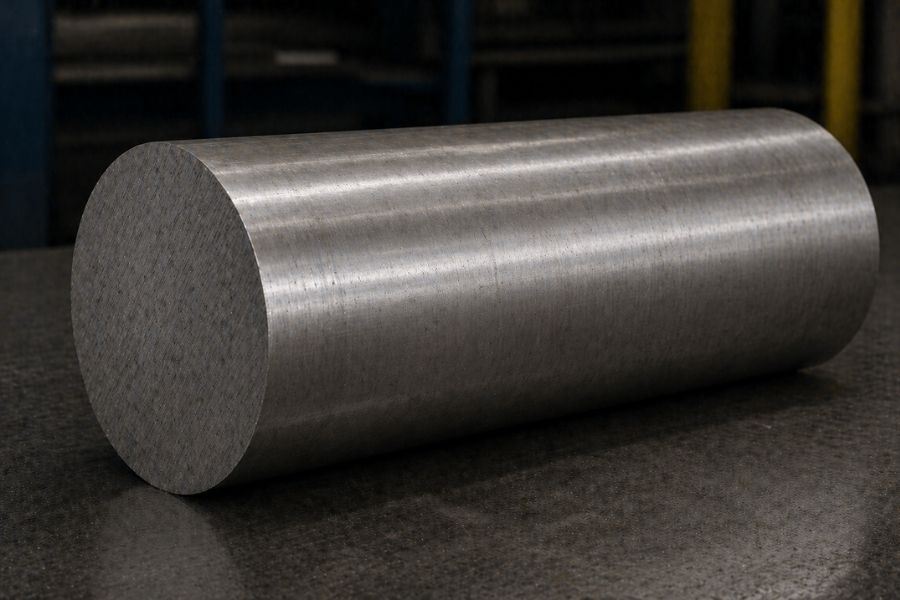

304 Stainless Steel – CNC Machining

304 stainless steel is selected for CNC machined components where corrosion resistance and formability are required alongside moderate mechanical strength.

Its fully austenitic structure drives work hardening during cutting, directly affecting tool load, surface finish, and dimensional control.

At ShvaveyMetal, 304 stainless steel machining processes are defined around chip control, cutting stability, and heat management.

304 stainless steel is an austenitic chromium-nickel alloy commonly identified as 18-8 stainless steel due to its nominal composition.

It is not heat-treatable for strength and relies on cold work for mechanical property enhancement.

Mechanical Properties (Typical – Annealed)

Property Typical Value Units
Density ~8.0 g/cm³
Yield Strength ~215 MPa
Ultimate Tensile Strength ~505 MPa
Elongation at Break ~40 %
Elastic Modulus ~193 GPa
Hardness (Brinell) ~150 HB

Mechanical properties vary with degree of cold work and product form.

Thermal & Physical Properties

Property Typical Value Units
Thermal Conductivity ~16 W/m·K
Coefficient of Thermal Expansion ~17.3 µm/m·K
Melting Range ~1,400–1,450 °C

These characteristics influence heat buildup and dimensional response during CNC machining.

Chemical Composition (Representative)

Element Typical Content (%)
Iron (Fe) Balance
Chromium (Cr) 18.0 – 20.0
Nickel (Ni) 8.0 – 10.5
Carbon (C) ≤ 0.08
Manganese (Mn) ≤ 2.0
Silicon (Si) ≤ 1.0
Phosphorus + Sulfur ≤ 0.075

Composition ranges depend on material standards and supplier certification.

304 stainless steel machining behavior is dominated by work hardening and low thermal conductivity.

Key machining characteristics include:

  • Rapid increase in cutting forces due to work hardening
  • Tendency for built-up edge formation
  • Long, continuous chip generation without chip-breaking strategies
  • Sensitivity to tool geometry and feed rate consistency

Stable machining requires sharp tooling, controlled feeds, and continuous cutting engagement.

Benefit Description
Corrosion Resistance Suitable for humid and chemically exposed environments
Material Availability Widely stocked in multiple forms
Formability Supports complex geometries
Weld Compatibility Commonly joined to machined assemblies
Predictable Properties Stable behavior in annealed condition

304 stainless steel is commonly used for CNC machined components such as:

  • Industrial enclosures and housings
  • Food and beverage processing parts
  • Medical and laboratory hardware
  • Fasteners and fittings
  • Corrosion-resistant mechanical components

Application suitability depends on environmental exposure and machining strategy.

Designation Relationship
304 Standard grade
304L Low-carbon variant for improved weldability
18-8 Generic designation overlapping 304 composition
18/10 Higher nickel variant, closer to 316
430 Ferritic stainless, lower corrosion resistance

304 is often compared against 316 and 430 when balancing corrosion resistance, cost, and machinability.

When designing CNC machined parts from 304 stainless steel, consideration should be given to:

  • Avoiding interrupted cuts that intensify work hardening
  • Maintaining sufficient feed rates to cut beneath hardened layers
  • Using rigid fixturing to prevent chatter
  • Planning chip control features where possible

Early alignment between design geometry and machining strategy is critical for process stability.

FAQ

What is the machinability of 304 stainless steel?

304 is rated at roughly 45% relative to free-machining B1112 steel, making it somewhat easier to cut than 316 but still demanding. It work-hardens quickly and produces long, stringy chips that require effective breaking and evacuation. Sharp tooling, consistent feed rates and reliable coolant delivery are the main factors in stable production.

How does machining 304 differ from machining 316?

304 is marginally more forgiving, with slightly better machinability and lower cutting forces, because it lacks the molybdenum content of 316. Both work-harden and require the same disciplined approach to feeds, tooling and coolant. In practice the process strategy is similar; 316 typically consumes tooling faster and generates more heat.

What causes poor surface finish when machining 304 stainless steel?

The usual causes are built-up edge from insufficient cutting speed, tool dwell allowing the work-hardened layer to form, worn tooling, or inadequate coolant reaching the cutting zone. Correcting finish problems generally means increasing surface speed, maintaining continuous engagement, and ensuring rigid workholding to eliminate deflection and chatter.

What are machined 304 stainless steel parts typically used for?

304 is the general-purpose austenitic grade, used for enclosures, fittings, brackets, fasteners, food and beverage equipment and laboratory hardware. It suits applications needing corrosion resistance and good formability without chloride exposure. Where salt water or aggressive chemicals are involved, 316 is normally the correct specification.

Does machining affect the corrosion resistance of 304 stainless steel?

It can. Contamination with free iron from tooling or fixturing, and heat tint from excessive cutting temperature, both compromise the passive chromium-oxide layer and can initiate rust. Controlled machining practice combined with appropriate passivation after production restores and preserves the intended corrosion performance.


Why Machine 304 Stainless Steel at ShvaveyMetal

ShvaveyMetal applies CNC machining workflows optimized for austenitic stainless steels, supported by controlled tooling and inspection processes.

This approach ensures that CNC machined 304 stainless steel components meet defined dimensional, surface, and functional requirements across prototype and production programs.
