4340 Steel – CNC Machining

4340 alloy steel is used for CNC machined parts that must sustain high tensile loads, torsion, and fatigue in service.

Machinability depends primarily on condition, with cutting forces and tool wear rising sharply as hardness increases after quench and temper.

At ShvaveyMetal, 4340 machining plans are built around condition control, roughing before final heat treatment, and finishing with stability targets for size and geometry.

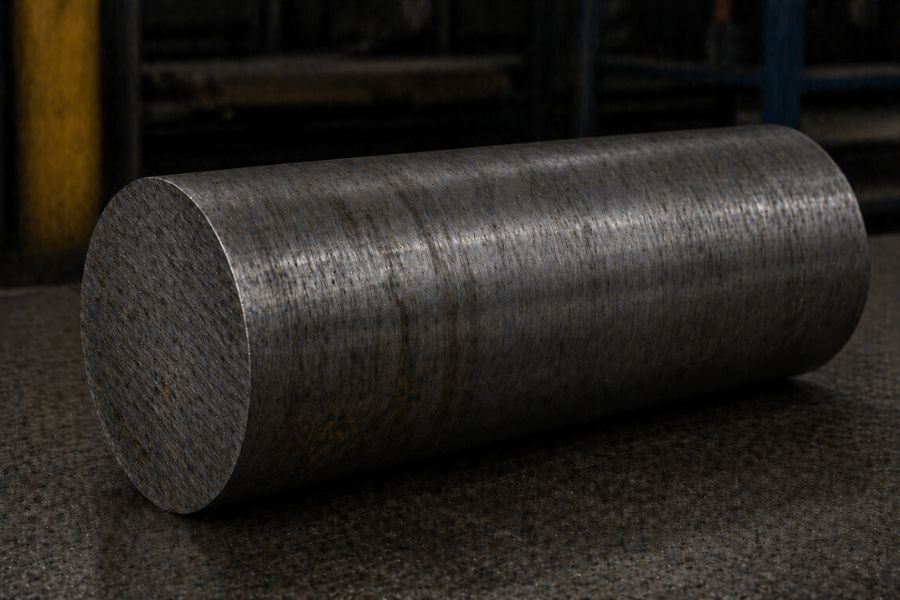

AISI 4340 is a nickel-chromium-molybdenum low-alloy steel specified for high strength and toughness in quenched and tempered conditions.

Compared with 4140, 4340 is typically chosen when higher hardenability and toughness are required in thicker sections or under impact and fatigue loading.

Mechanical Properties (Typical – Quenched & Tempered)

Property Typical Value Units
Density ~7.85 g/cm³
Yield Strength ~850–1,200 MPa
Ultimate Tensile Strength ~1,080–1,400 MPa
Elongation at Break ~10–15 %
Elastic Modulus ~205 GPa
Hardness ~28–50 HRC

Mechanical properties vary significantly with achieved hardness, section size, and tempering temperature.

Thermal & Physical Properties

Property Typical Value Units
Thermal Conductivity ~44 W/m·K
Coefficient of Thermal Expansion ~12.3 µm/m·K
Maximum Service Temperature ~400 °C

These properties affect heat flow, thermal growth during machining, and distortion sensitivity after heat treatment.

Chemical Composition (Representative)

Element Typical Content (%)
Iron (Fe) Balance
Nickel (Ni) 1.65 – 2.00
Chromium (Cr) 0.70 – 0.90
Molybdenum (Mo) 0.20 – 0.30
Carbon (C) 0.38 – 0.43
Manganese (Mn) 0.60 – 0.80
Silicon (Si) 0.15 – 0.35

Composition ranges depend on the governing material standard and supplier certification.

4340 machining behavior is governed by hardness level, microstructure, and residual stress state from prior processing.

Key machining characteristics include:

  • Increasing cutting forces and heat generation as hardness rises, with a corresponding reduction in tool life
  • Elevated risk of chatter in slender geometries due to higher cutting loads in quenched and tempered conditions
  • Tendency for surface damage if tool edge integrity degrades, especially in interrupted cuts
  • More predictable roughing and chip control in annealed and normalized states than in hardened states
  • Dimensional shift risk when machining parts that will be quenched and tempered after roughing

Machining is typically performed in an annealed or normalized condition for bulk material removal, followed by quench and temper, then finish machining to final tolerances.

Benefit Description
High Strength After Q&T Supports load-bearing components with high allowable stress
High Toughness Improves damage tolerance in impact and fatigue environments
Hardenability in Thicker Sections Enables through-hardening where 4140 may be section-limited
Stable Mechanical Performance Properties can be tuned via tempering to meet specified targets
Broad Process Compatibility Works with rough–heat treat–finish workflows for tight tolerance parts

4340 alloy steel is commonly used for CNC machined components such as:

  • Drive shafts, spindles, and high-load pins
  • Gears, hubs, and couplings under cyclic loading
  • Heavy mechanical components requiring toughness and strength after heat treatment
  • Tooling and fixtures where high strength is required without stainless corrosion performance

Application suitability depends on target hardness, required toughness, and the planned heat treatment and finishing sequence.

Condition General Characteristics
Annealed Maximum machinability; used for roughing and high material removal
Normalized Moderate machinability; improved structural uniformity versus annealed
Quenched (As-Hardened) Highest hardness with high brittleness; rarely used without tempering
Quenched & Tempered (Q&T) Strength–toughness balance set by temper temperature; common final condition
Stress Relieved Intermediate step to reduce distortion risk between roughing and finishing

Final properties and distortion behavior depend on section size, quench method, and tempering control.

  • Define the required final material condition before tolerance planning
  • Reserve finishing stock for post-heat-treatment machining when tight tolerances are required
  • Account for geometry sensitivity to quench distortion in thin or asymmetric features
  • Avoid aggressive interrupted cuts in high-hardness conditions without rigid setups
  • Specify hardness ranges and inspection points aligned with functional requirements
  • Plan stress relief steps when large stock removal or distortion-sensitive features are present

Early alignment between design intent, heat treatment targets, and the CNC process route reduces rework risk.

FAQ

What is the machinability of 4340 steel?

In the annealed condition 4340 is rated around 50–60% relative to B1112, which is workable with carbide tooling and rigid setups. In the quenched and tempered condition machinability drops sharply as hardness rises, and finishing operations often move to grinding. Most machining is therefore performed before final heat treatment.

Should 4340 be machined before or after heat treatment?

Typically before. Components are rough and semi-finish machined in the annealed or normalised condition with finishing stock left on, then quenched and tempered, then finish-machined or ground. This sequence manages both machinability and the distortion that accompanies through-hardening in this alloy.

Why is 4340 chosen for highly loaded components?

Its nickel chromium molybdenum composition gives exceptional hardenability, so it develops uniform strength and toughness even in thick sections. Combined with good fatigue resistance, this makes it a standard specification for shafts, spindles, heavy duty gears and other components subject to high cyclic loading.

What are machined 4340 alloy steel parts used for?

Common applications include drive and transmission shafts, spindles, crankshafts, gears, heavy duty fasteners, industrial machinery components and tooling, generally where high tensile strength, toughness and fatigue performance are all required together.

Does 4340 steel require corrosion protection?

Yes. 4340 is an alloy steel, not a stainless steel, and its chromium content is far below the level needed to form a passive protective layer. Machined components normally require plating, coating, black oxide or oiling, and the protection method should be specified alongside the heat treatment condition.
