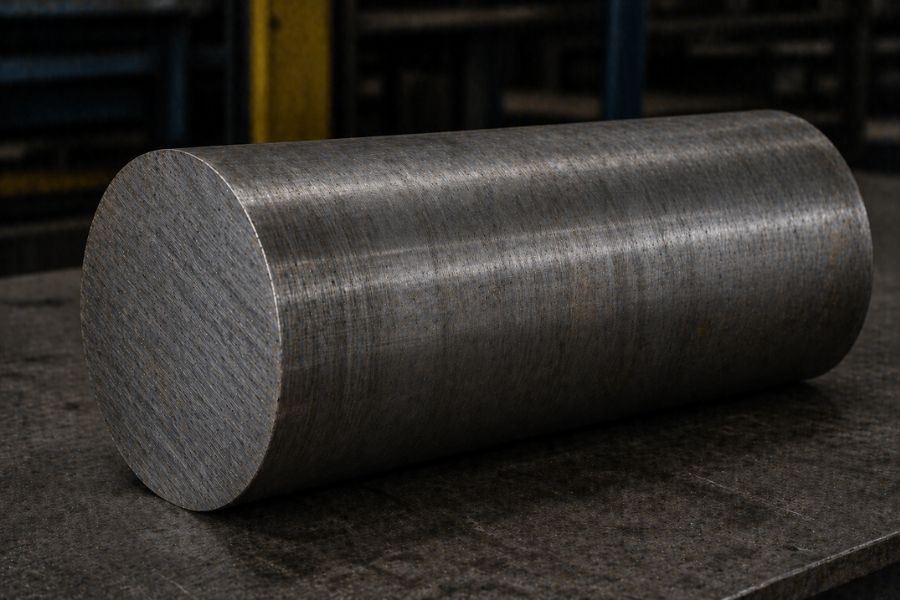

4130 Steel – CNC Machining

4130 alloy steel is used for CNC machined components that require a controlled balance between strength, toughness, and weldability.

Its machining response is closely tied to material condition, with moderate cutting forces in annealed states and increasing tool load after heat treatment.

At ShvaveyMetal, 4130 machining strategies are defined around condition selection, geometry sensitivity, and alignment with post-machining heat treatment requirements.

AISI 4130 is a chromium-molybdenum low-alloy steel commonly specified for structural and mechanical components requiring moderate strength and good toughness.

It is frequently selected as a lower-alloy alternative to 4140 when extreme hardness or deep-section hardenability is not required.

Mechanical Properties (Typical – Quenched & Tempered)

Property Typical Value Units
Density ~7.85 g/cm³
Yield Strength ~560–760 MPa
Ultimate Tensile Strength ~670–930 MPa
Elongation at Break ~18–25 %
Elastic Modulus ~205 GPa
Hardness ~18–32 HRC

Mechanical properties vary depending on heat treatment condition and achieved hardness.

Thermal & Physical Properties

Property Typical Value Units
Thermal Conductivity ~42 W/m·K
Coefficient of Thermal Expansion ~12.3 µm/m·K
Maximum Service Temperature ~350 °C

These properties influence thermal growth, heat dissipation, and dimensional behavior during CNC machining.

Chemical Composition (Representative)

Element Typical Content (%)
Iron (Fe) Balance
Chromium (Cr) 0.80 – 1.10
Molybdenum (Mo) 0.15 – 0.25
Carbon (C) 0.28 – 0.33
Manganese (Mn) 0.40 – 0.60
Silicon (Si) 0.15 – 0.35

Composition ranges depend on the applicable material standard and supplier certification.

4130 machining behavior is influenced by its relatively low alloy content and moderate hardenability.

Key machining characteristics include:

  • Predictable cutting behavior and chip formation in annealed and normalized conditions
  • Lower cutting forces compared to higher-alloy steels such as 4140 and 4340
  • Good surface finish potential with standard carbide tooling
  • Increased tool wear and heat sensitivity as hardness increases after quench and temper
  • Reduced distortion risk compared to higher-carbon alloy steels

Machining is often performed in the annealed or normalized state, with heat treatment applied after roughing when higher strength is required.

Benefit Description
Balanced Strength and Toughness Suitable for structural and mechanical parts without extreme hardness requirements
Good Machinability Lower tool load compared to higher-alloy Cr-Mo steels
Heat Treatment Flexibility Mechanical properties can be adjusted via quench and temper
Weldability More weld-friendly than higher-carbon alloy steels
Cost-Efficient Alloy Steel Reduced alloy content compared to 4140 and 4340

4130 alloy steel is commonly used for CNC machined components such as:

  • Structural brackets and frames
  • Motorsport tubular components
  • Shafts, pins, and fittings with moderate load requirements
  • Welded assemblies requiring post-machining operations
  • Mechanical components where toughness is prioritized over extreme hardness

Application suitability depends on final strength targets, geometry, and heat treatment strategy.

Condition General Characteristics
Annealed Maximum machinability; used for roughing and complex geometry
Normalized Improved strength and uniformity with good machinability
Quenched (As-Hardened) Increased hardness with reduced toughness; rarely final condition
Quenched & Tempered (Q&T) Strength and toughness adjusted via tempering temperature
Stress Relieved Used to reduce residual stress prior to finishing when needed

Final properties depend on section size, quench method, and tempering control.

  • Select the appropriate material condition based on strength and weldability requirements
  • Avoid over-hardening when toughness or weld integrity is critical
  • Reserve finishing stock if post-heat-treatment machining is planned
  • Manage distortion risk in thin-walled or asymmetric geometries
  • Define hardness and inspection requirements aligned with functional needs

Early coordination between design, machining, and heat treatment improves process reliability.

FAQ

What is 4130 steel?

4130 is a chromium molybdenum low alloy steel, commonly known as chromoly. It contains around 0.30% carbon, giving good strength and toughness while remaining readily weldable. It is supplied annealed or normalised for machining and can be heat treated to higher strength levels.

What is the machinability of 4130 steel?

4130 machines well in the annealed or normalised condition, rated roughly 65–70% relative to B1112. It produces manageable chips and good surface finishes with conventional carbide tooling. Machinability decreases as hardness increases through heat treatment, so machining is usually completed before final hardening where possible.

What should be considered when machining 4130 chromoly?

Rigid workholding and consistent feed rates are the main requirements. Because 4130 is frequently used in tubular and thin-wall forms, workholding must support the part without deforming it. Where components are welded before machining, stress relief beforehand helps prevent movement during subsequent cutting operations.

Is 4130 a stainless steel?

No. 4130 is an alloy steel containing roughly 1% chromium, enough to improve hardenability and strength but far below the level needed for stainless corrosion resistance. Machined components require paint, plating or another protective coating in corrosive environments.

What is the difference between 4130 and 4340 steel?

Both are alloy steels, but 4340 contains nickel and significantly more carbon, giving higher strength and much deeper hardenability in heavy sections. 4130 has lower carbon, making it more weldable and easier to fabricate, and it is typically selected for tubular and welded structures.


Why Machine 4130 Alloy Steel at ShvaveyMetal

ShvaveyMetal machines 4130 alloy steel using CNC workflows aligned with material condition, geometry sensitivity, and downstream heat treatment requirements.

This approach ensures dimensional control and repeatable performance across prototype and production components where balanced mechanical properties are required.
