What Is Swiss Type Machining?
Swiss Type machining originated in the Swiss watchmaking industry, where extremely small and precise mechanical components were required. The fundamental principle developed for watchmaking remains relevant today, even as the technology has evolved.

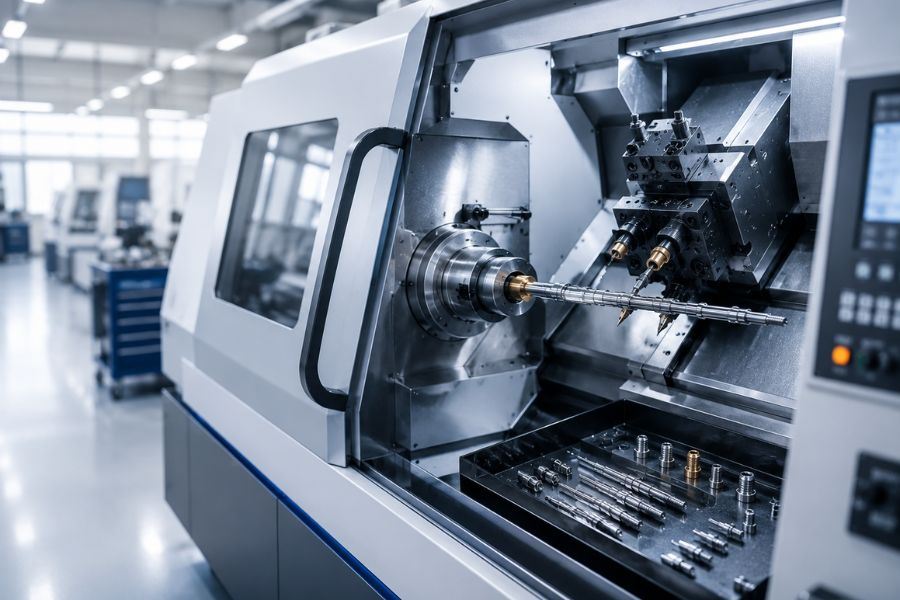

Unlike conventional turning, Swiss machines use a sliding headstock that feeds bar stock through a guide bushing. Cutting tools operate very close to this support point, minimizing deflection during machining.
Sliding Headstock and Guide Bushing Principle
The guide bushing supports the material immediately adjacent to the cutting area. As the bar stock advances, tools remove material in a highly controlled manner. This configuration allows:
- Reduced vibration during cutting
- Stable machining of long, slender parts
- Improved surface finish and dimensional consistency
The result is a process well suited for micro machining and complex geometries that would be challenging on standard lathes.
Precision Swiss Machining Capabilities at ShvaveyMetal
Swiss Type machining requires more than specialized equipment. It demands process expertise, precise setup control, and advanced programming to fully leverage the technology.
At ShvaveyMetal, Swiss machining capabilities are applied to components that require micro-scale accuracy and controlled production behavior. Multi-axis synchronization enables multiple operations such as turning, milling, drilling, and threading to be performed in a single cycle.
Process Integration and Stability
By completing multiple features without re-clamping, Swiss machining reduces cumulative error and preserves feature alignment. This approach supports:
- Consistent concentric accuracy between features
- Reduced handling and part transfer
- Improved repeatability from part to part
Process parameters are defined to maintain stability across both short and long production runs.
Advantages of Swiss Turning Services
Swiss Type CNC machining offers several technical advantages that differentiate it from conventional turning approaches.
Accuracy and Vibration Control
Supporting the material close to the cutting zone significantly reduces deflection. This improves surface finish, dimensional accuracy, and tool life, especially when machining small diameters or extended features.
Concentric Accuracy and Feature Alignment
Because multiple operations are performed in one continuous setup, alignment between features is preserved. This is particularly important for components where concentricity directly affects performance.
Production Efficiency and Throughput
Swiss machines are designed for efficient production. Bar feeders enable continuous operation, while synchronized axes allow complex parts to be completed in fewer cycles. Together, these features support high throughput without sacrificing precision.
Applications of Swiss Type CNC Machining
Swiss Type machining is best suited for components that combine small size with geometric complexity. These parts often include fine details and tight tolerances that leave little margin for variation.
Typical Component Characteristics
Common examples include:
- Shafts and pins with long, slender profiles
- Precision housings and sleeves
- Micro fittings and connectors
- Parts with multiple features requiring tight alignment
While Swiss machining is frequently associated with medical and high-tech environments, its value is driven by part requirements rather than industry classification.
Quality and Inspection Standards
Maintaining precision in Swiss Type machining depends on continuous monitoring and verification throughout the process.
In-process inspection allows dimensional trends to be identified early, supporting corrective action before deviations affect part quality. Measurement methods are adapted for micro-scale features, where even small variations can be significant.
Inspection data is recorded and linked to production information, supporting traceability and long-term process control without interrupting production flow.
Why Choose ShvaveyMetal for Swiss Machining
ShvaveyMetal combines advanced Swiss Type CNC equipment with disciplined process control and machining expertise. Experience with sliding headstock systems, bar stock optimization, and multi-axis coordination enables reliable production of complex, small-scale components.
The emphasis remains on process sophistication, tight tolerances, and repeatable accuracy rather than on volume alone.
Enhancing Precision with Swiss Type CNC Machining
Learn how Swiss Type CNC machining can enhance your production precision and support complex component requirements.
