Why Manufacturability Becomes the Real Constraint
In CNC machining projects, the most serious limitations rarely appear during design reviews. They emerge later, when production begins and the gap between design intent and manufacturing reality becomes visible.
Parts that meet all functional requirements on paper may still suffer from unstable machining, long cycle times, or inconsistent quality. In most cases, the root cause is not the CNC process itself, but design decisions that were made without a clear understanding of how parts are actually produced.
Design for Manufacturability exists to close this gap by embedding production logic into the design phase.

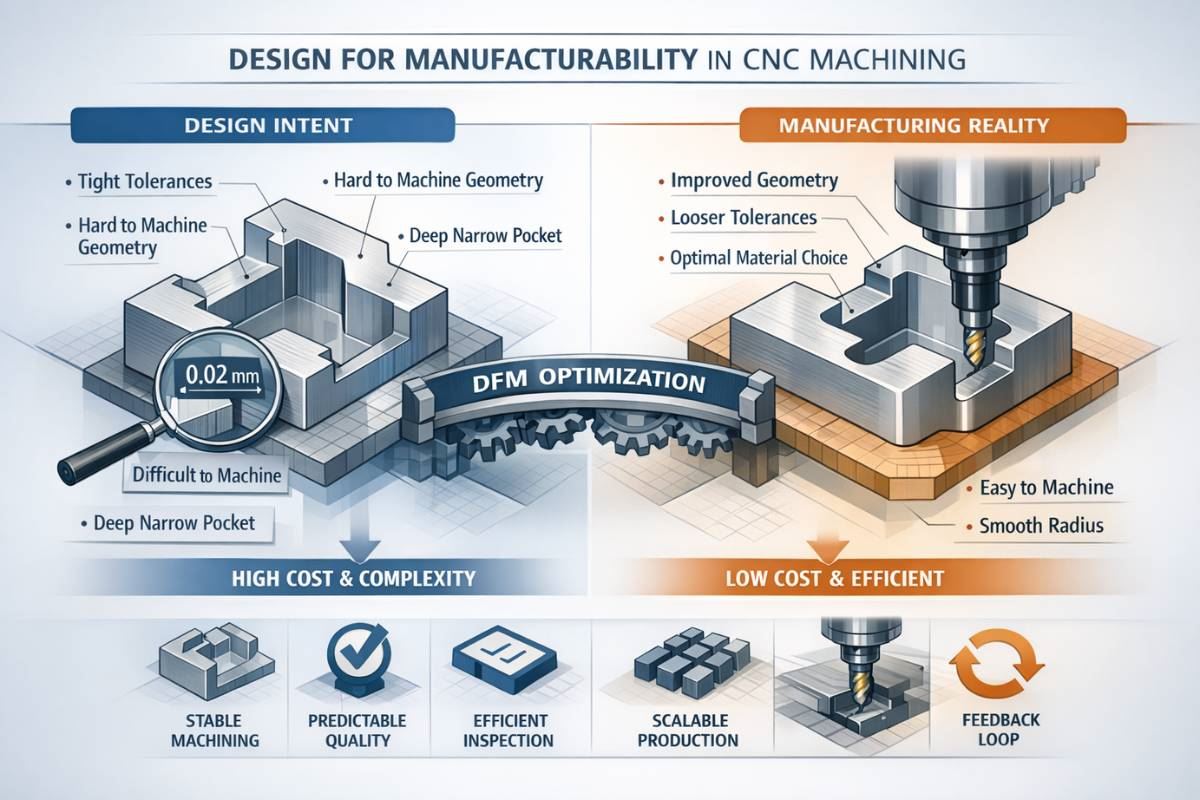

What Design for Manufacturability Really Addresses
Design for Manufacturability is often misunderstood as a set of simplification rules. In practice, it is a decision-making framework that evaluates how design choices affect production behavior over time.
A manufacturable design is one that supports:
- Stable machining conditions
- Predictable quality outcomes
- Efficient inspection and validation
- Scalability from prototype to serial production
DFM does not reduce engineering ambition. It ensures that ambition survives contact with real manufacturing constraints.
Where Design and CNC Machining Commonly Diverge
From a design perspective, feasibility often means that a geometry can be machined. From a manufacturing perspective, the same geometry must be machined repeatedly, without constant adjustment, and within acceptable cost and lead-time boundaries.
When manufacturability is not considered early, production teams compensate later by adding process controls, reducing cutting parameters, or increasing inspection frequency. These compensations increase cost and reduce robustness, even though the original design remains unchanged.
DFM shifts this burden upstream, where changes are cheaper and more effective.

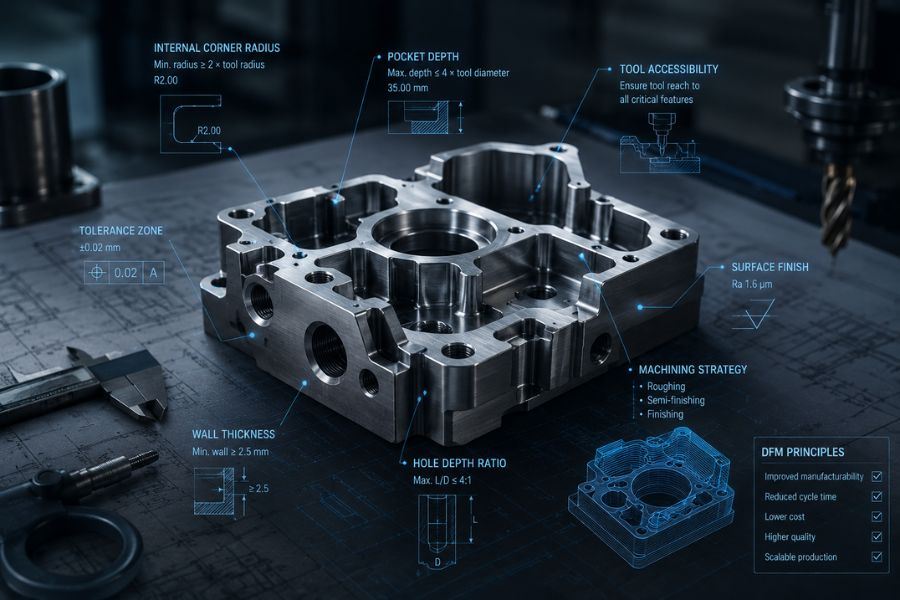

Geometry Decisions That Shape Machining Behavior
Tool Access and Process Stability
In CNC machining, geometry dictates how tools engage material, how forces are distributed, and how stable the process remains over time. Features such as deep cavities, narrow slots, or sharp internal corners often require long tools and conservative cutting strategies.
Even small geometric adjustments can significantly improve machinability, for example:
- Increasing internal corner radii to allow standard tooling
- Limiting unnecessary depth in pockets
- Aligning features to reduce the number of machining orientations
These changes rarely affect function, but they dramatically improve process stability.
Tolerances as a Production Variable
Tolerances define not only accuracy requirements, but also process capability limits. Overly tight tolerances increase machining time, inspection effort, and rejection risk, even when they provide no functional benefit.
A DFM-driven tolerance strategy focuses precision where it matters and allows flexibility where it does not. This approach improves yield and reduces variability without compromising performance.
Rather than asking “how tight can we machine this?”, DFM asks “how tight does this feature actually need to be?”.
Material Choice and Machining Reality
Material selection influences far more than mechanical performance. During CNC machining, material behavior affects tool wear, heat generation, surface integrity, and dimensional stability.
Designs that ignore these interactions often rely on late-stage process adjustments to maintain quality. DFM encourages early consideration of how materials behave under cutting conditions, allowing machining strategies to be defined proactively rather than reactively.
This alignment reduces risk and improves repeatability, especially in demanding production environments.
Cost Reduction Through Design Alignment
Manufacturing cost in CNC machining is primarily driven by time, stability, and rework, not by material price alone.
Design for Manufacturability reduces cost by removing unnecessary complexity from the process. Typical areas of impact include:
- Reducing the number of setups
- Enabling the use of standard tooling
- Simplifying inspection strategies
- Improving first-pass yield
These improvements are achieved through design alignment, not through quality compromise.
Designing With Production Scale in Mind
A design that performs well as a prototype may not behave the same way in serial production. Volume introduces cumulative variation, inspection throughput constraints, and long-term process drift.
DFM ensures that scalability is considered early by evaluating whether the design supports:
When scale is ignored at the design stage, costly redesigns often follow.
Digital Tools as DFM Enablers
Modern CAD/CAM systems and machining simulations provide valuable insight into manufacturability before production begins. They allow engineers to assess tool access, estimate cycle times, and identify high-risk features early.
However, these tools only support DFM when their feedback influences design decisions. Used correctly, they reduce trial-and-error and strengthen collaboration between engineering and manufacturing teams.
DFM as a Continuous Engineering Practice
Design for Manufacturability is not a single checkpoint. It evolves through feedback from production data, inspection results, and machining experience.
Over time, this feedback refines design guidelines, stabilizes processes, and improves overall manufacturing performance. Organizations that treat DFM as an ongoing discipline consistently achieve better cost control and quality outcomes.
Conclusion
Design for Manufacturability aligns engineering intent with manufacturing reality. In CNC machining, where precision and efficiency must coexist, DFM enables designs that are not only functional, but also stable, scalable, and cost-effective.
When applied thoughtfully, DFM reduces risk, shortens lead times, and ensures that designs transition smoothly from drawing to production.
